IMC(CIH)型不锈钢磁力泵

【IMC(CIH)型不锈钢磁力泵】产品：

【IMC(CIH)型不锈钢磁力泵】产品简介：

IMC(CIH)型磁力传动离心泵是我公司最新研究开发的新型完全无泄漏耐腐蚀泵，其技术指标与国外同类产品水平相当。性能、尺寸和标记符合ISO2858/GB5662/DIN24256标准。外形安装尺寸与IH型泵一致，方便用户
IMC(CIH)型磁力传动离心泵适用与石油、化工、环保、制药、食品、造纸、印染、电镀、污水处理等行业，是易燃、易爆、易汽化、有毒、稀有贵重和各种和各种腐蚀液体输送的理想设备。

IMC(CIH) series magnetic-force drive centrifugal pump is a new type entirely non-leakage erosion-proof pump developed by our company, its technology reaches the level of the con-generic products from overseas, and the capability, dimension and mark are in conformity with ISO2858/GB5662/DIN24256. Its external installation dimension is the same with that of IH type pump, and is convenient to replace and use.
IMC(CIH) series magnetic-force drive centrifugal pump is applied in the fields such as petroleum, chemicals, environ-mental protection, pharmacy, foodstuff, papermaking, printingand dyeing, electroplating, sewage treatment etc., and is the ideal equipment to transfer the flammable, explosive, easily-evaporization, poisonous, rare or erosive liquids.

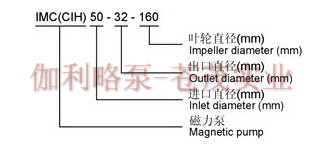

【IMC(CIH)型不锈钢磁力泵】型号意义：

【IMC(CIH)型不锈钢磁力泵】性能参数：

型号

流量
Q
(m^3/h)

扬程
H
(m)

转速
n
(r/min)

轴功率
Pa
(kw)

效率
η
(%)

气蚀余量
(NPSH)r
m

配带电动机型号功率

输送介质比重 g/cm^3

≤1

≤1.3

≤1.84

IMC50-32-125

7.5
12.5
15

22
20
18.5

2900

1.49
1.62
1.63

30
42
43

3.5
3.5
4.0

Y
YB90L-2
2.2

Y
YB100L-2
3.0

Y
YB112M-2
4.0

IMC50-32-160

7.5
12.5
15

34
32
29

2900

2.48
2.79
2.96

28
39
40

3.5
3.5
4.0

Y
YB100L-2
3.0

Y
YB112M-2
4.0

Y
YB132S1-2
5.5

IMC50-32-200

7.5
12.5
15

52.5
50
48

2900

5.10
5.49
6.13

21
31
32

2.5
2.5
3.0

Y
YB132S2-2
57.5

Y
YB132S2-2
7.5

Y
YB160M1-2
11

IMC50-32-250

7.5
12.5
15

22
20
18.5

2900

9.57
10.89
13.32

17.5
25
26

3.5
3.5
4.0

Y
YB160M2-2
15

Y
YB160L-2
18.5

Y
YB180M-2
22

IMC65-50-125

15
25
30

22
20
18.5

2900

2.25
2.67
2.91

40
51
52

3.5
3.5
4.0

Y
YB100L-2
3.0

Y
YB112M-2
4.0

Y
YB132S1-2
5.5

IMC65-50-160

15
25
30

34
32
29.5

2900

4.34
5.07
5.48

32
43
44

3.5
3.5
4.0

Y
YB132S1-2
5.5

Y
YB132S2-2
7.5

Y
YB160M1-2
11

IMC65-40-200

15
20
30

53
50
47

2900

8.66
9.20
10.1

25
37
38

3.5
3.5
4.0

Y
YB160M1-2
11

Y
YB160M2-2
15

Y
YB160L1-2
18.5

IMC65-40-250

15
25
30

82
80
78.5

2900

13.4
14.72
16.88

25
37
38

3.5
3.5
4.0

Y
YB160L-2
18.5

Y
YB180M-2
22

Y
YB200L1-2
30

IMC65-40-315

15
25
30

127
125
123

2900

27.33
27.44
30.44

19
31
33

3.5
3.5
4.0

Y
TB200l2-2
37

Y
YB225M-2
45

Y
YB280S-2
75

IMC80-65-125

30
50
60

22.5
20
18

2900

4.48
5.24
5.55

41
52
53

4.0
4.0
4.5

Y
YB132S1-2
5.5

Y
YB132S2-2
7.5

Y
YB160M1-2
11

IMC80-65-160

30
50
60

34
32
29

2900

7.72
9.08
9.67

36
48
49

4.0
4.0
4.5

Y
YB160M1-2
11

Y
YB160M2-2
15

Y
YB160L1-2
18.5

IMC80-50-200

30
50
60

53
50
47

2900

12.03
14.80
16.34

36
46
47

4.0
4.0
4.5

Y
YB160M1-2
11

Y
YB160M2-2
15

Y
YB160L1-2
18.5

IMC80-50-250

30
50
60

84
80
75

2900

19.06
23.68
26.07

36
46
47

4.0
4.0
4.5

Y
YB200L1-2
30

Y
YB200L2-2
37

Y
YB225M-2
45

IMC80-50-315

30
50
60

128
125
123

2900

36.05
40.56
44.75

29
42
45

4.0
4.0
4.5

Y
YB250M-2
55

Y
YB280S-2
15

Y
YB280M-2
90

IMC100-80-125

60
100
120

23
20
16.5

2900

8.35
9.73
9.46

45
56
57

4.0
4.0
4.5

Y
YB160M1-2
11

Y
YB160M2-2
15

Y
YB160L-2
18.5

IMC100-80-160

60
100
120

35
32
28

2900

12.43
15.85
16.34

46
55
56

4.0
4.0
4.5

Y
YB160L-2
18.5

Y
YB180M-2
22

Y
YB200L1-2
30

IMC100-65-200

60
100
120

54
50
47

2900

21.01
25.69
28.44

42
53
56

4.0
4.0
4.5

Y
YB200L1-2
30

Y
YB200L2-2
37

Y
YB225M-2
45

IMC100-65-250

60
100
120

89
80
74.5

2900

37.98
45.39
49.69

37
48
49

4.0
4.0
4.5

Y
YB255M-2
45

Y
YB250M-2
55

Y
YB280S-2
75

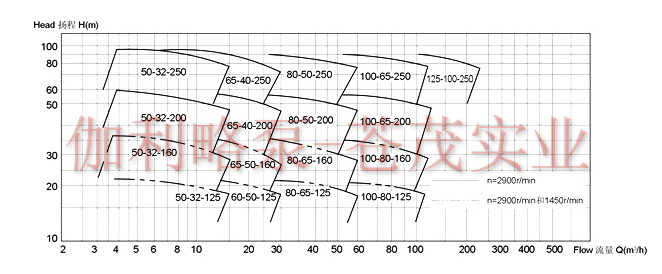

【IMC(CIH)型不锈钢磁力泵】型谱图：

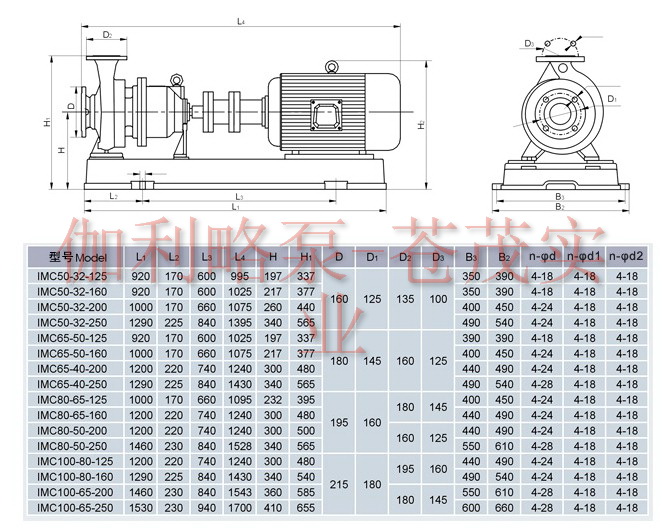

【IMC(CIH)型不锈钢磁力泵】安装尺寸图：
